Product description
Function:

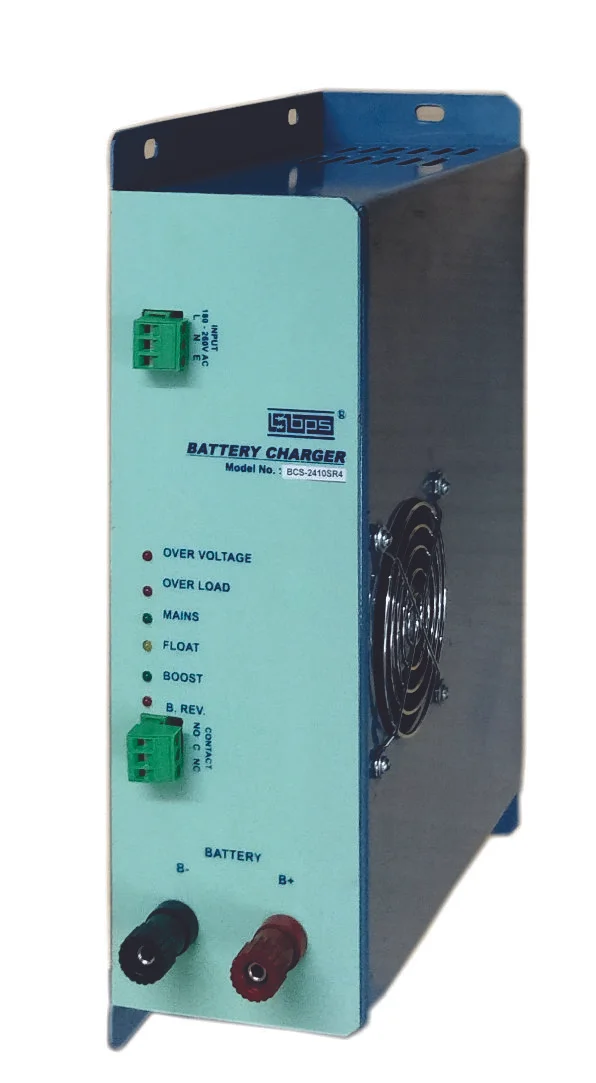

BPS Make SMPS Battery Charger- BCS2420SR4 is designed for charging 24 Volt battery @ max 20 Amps. It is most suitable for electrical panels with DC sources like AMF panels and automotive batteries. It is compact ( 300 mm x 90 mm x 220 mm) and panel mountable. It has a detachable connector for easy wiring and replacement. input AC voltage range is 180-260 Volt and DC Output is 26.5-28.5 V for charging 24 V. battery.
The charger has an auto Boost/ Float selection. If the connected battery draws a current over 1 Amp, it starts the battery with Boost mode till the battery reaches 28.5 V. After reaching 28.5 V. it will be shifted to Float mode with 26.5 V thus keeping the battery under Float mode. It has protection for overload, Battery Reverse connection & Over
Temperature protection.
Specification
| AC Input | : 180-260V AC |
| DC Output | : -Float Mode: 26.5 V -Boost Mode: 28.5 V |
| Charging current: | 20 Amps (max.) |
| Over Voltage | : set at 125% (+/-5%) of output |
| Withstand Voltage | :I/P-O/P : 3Kv |
| Line Regulation | :+/- 1% on full load |
| Load Regulation | :on main of +/- 1% |
| Working Temperature | :10~60 Deg. C. |
| Efficiency | :>85% typical @ full rated load |
| Safety Standard | : to comply with UL1950, IEC950 |
| Fusing | : through MOR/Glass fuse |
| Protection | : Overload, Overvoltage & Short Circuit Protected. |
“HIGH-EFFICIENCY LOW PROFILE CHARGER “
FEATURES:-
Switching Mode Control-based Design
Charges batteries with CC/ CV mode.
Over Voltage & Current Protection.
User-Friendly Operation.
Input Surge current limiting.
Low Ripple & Noise.
Over Temperature Shutdown.
LED indication Protections.
– Over Voltage
– Over Load
– Mains
– Float
– Boost
– Battery Rev.
Potential free contact for fault indication. Compact, detachable connector and panel mountable
